China Manufacture Wdh104 Wdh110 Wdh112 Wdh120 Wdh122 Wdh480 Wdh480xhd Welded Steel Drag Chain With High Quality

DRAG CHAINSWelded steel drag chains are of all-steel, welded rugged construction for most drag applications. With their large, wide pushing area, they provide a sizeable carrying capacity when operated at moderate speeds and also keep the chain from riding over the top of the material. Can be used i......

Send Inquiry

Product Description

DRAG CHAINS Welded steel drag chains are of all-steel, welded rugged construction for most drag applications. With their large, wide pushing area, they provide a sizeable carrying capacity when operated at moderate speeds and also keep the chain from riding over the top of the material. Can be used in the same troughs and over the same sprockets as their cast chain counter- parts.

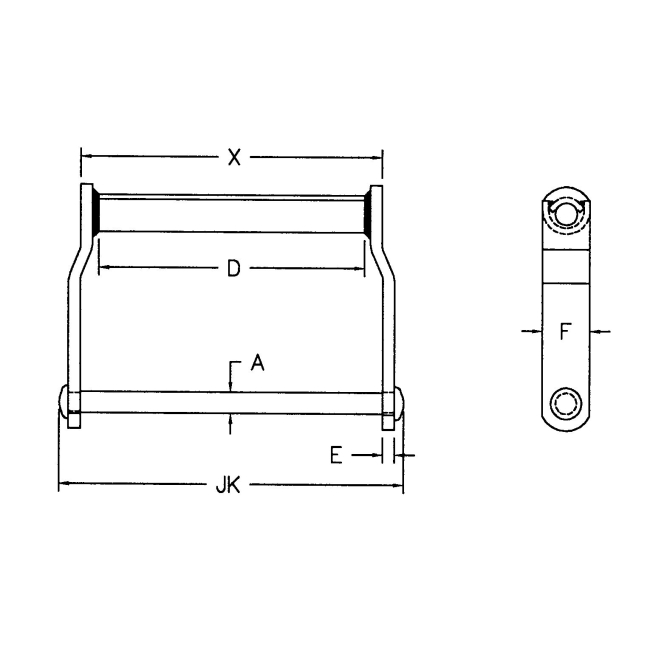

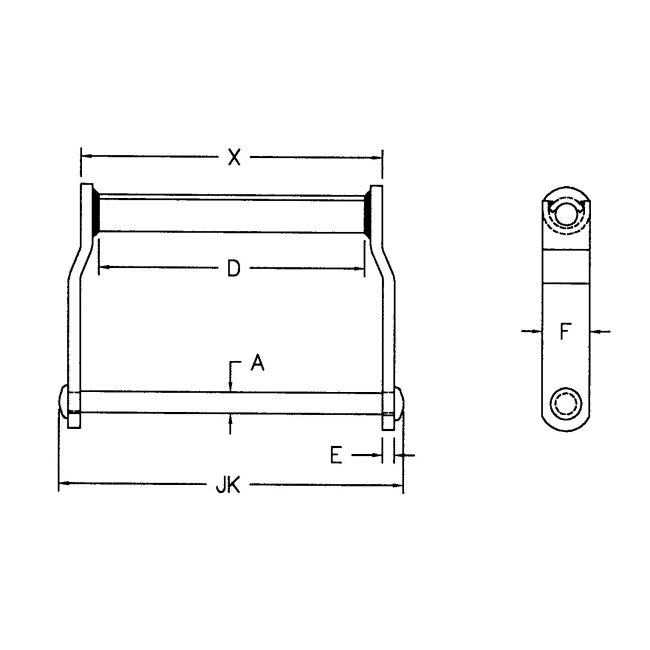

Chain Number	Pitch (P)	Approx. Working Load	Average Ultimate Strength	Dimensions (inches)
Chain Number	Pitch (P)	Approx. Working Load	Average Ultimate Strength					Rivet Diameter A	Side Bar Thickness E	Side Bar Height F	Sprocket Surface D	Length of Bearing X	Overall Width JK
WDH104	6.000	10,000 lbs.	60,000 lbs.	.75	.38	1.50	4.12	5.38	7.00
WDH110	6.000	10,000 lbs.	60,000 lbs.	.75	.38	1.50	9.00	10.38	11.88
WDH112	8.000	10,000 lbs.	60,000 lbs.	.75	.38	1.50	9.12	10.38	11.88
WDH120	6.000	15,000 lbs.	90,000 lbs.	.88	.50	2.00	8.62	10.12	12.00
WDH122	8.000	15,000 lbs.	90,000 lbs.	.88	.50	2.00	8.50	10.12	12.00
WDH480	8.000	15,000 lbs.	90,000 lbs.	.88	.50	2.00	11.00	12.75	14.62
WDH480XHD	8.000	20,500 lbs.	125,000 lbs.	1.00	.62	2.00	11.25	13.00	14.81

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
