China Manufacture Cranked Link Chain Heavy Duty Engineering 2010 2512 2814 3315 3618 4020 4824 Cranked-link Transmission Chains

Heavy duty cranked link transmission chainsHeavy-duty cranked-link chain is famous for its high accuracy, resistance to wear and fatigue durability. its specific cranked-link joint structure is more suitable for the work environment with larger impact load and frequently changed intermittence. it ma......

Send Inquiry

Product Description

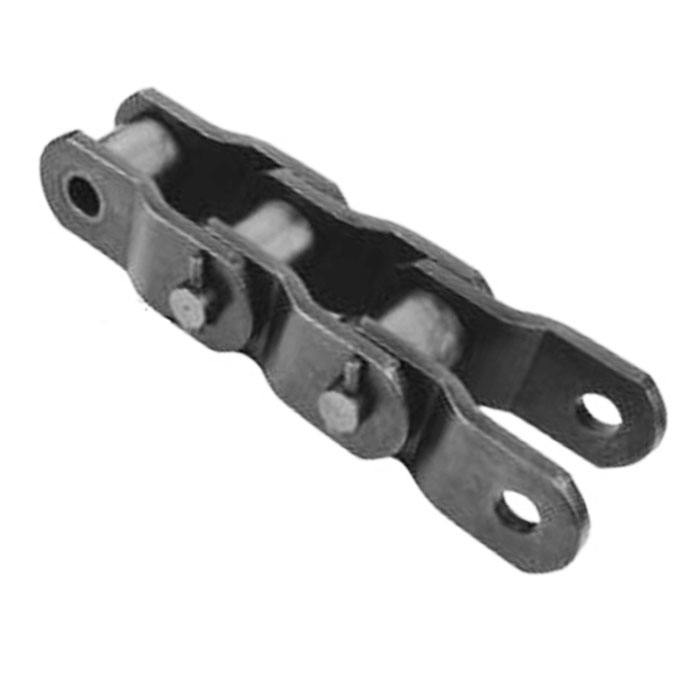

Heavy duty cranked link transmission chains

Heavy-duty cranked-link chain is famous for its high accuracy, resistance to wear and fatigue durability. its specific cranked-link joint structure is more suitable for the work environment with larger impact load and frequently changed intermittence. it mainly is used for large equipment and power transmission under heavy working conditions in mining, metallurgy, and engineering machinery industries.

Heavy duty cranked link chain supplies by Raydafon is manufactured from high quality special heat treated alloy steel. Due to it’s quality, this heavy duty cranked link chain have a longer service life. They are offered with the facility of length tolerances and lateral clearances that helps it to operate over flame cut or cast tooth sprockets.

usage: chain drive applications involving extremely heavy loads or particularly adverse operating conditions.

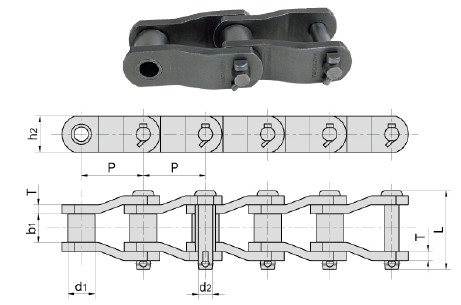

Chain no.	Pitch(p)	Roller Diameter (D1 Max)	Width Between Inner plate(B1 Min)	Pin Diameter(D2 Max)	Pin Length (L Max)	Plate depth (H2)	Plate thickness (T)	Ultimate Tensile Strength (Q Min)	Average Tensile Strength (Q0)
2010	63.50	31.75	38.1	15.90	90.70	47.80	7.90	250.0/56818	270.00
2512	77.90	41.28	39.6	19.08	103.40	60.50	9.70	340.0/77272	367.20
2814	88.90	44.45	38.1	22.25	117.60	60.50	12.70	471.0/105955	507.60
3315	103.45	45.24	49.3	23.85	134.90	63.50	14.20	550.0/125000	594.00
3618	114.30	57.15	52.3	27.97	141.20	79.20	14.20	760.0/172727	820.80
4020	127.00	63.50	69.9	31.78	168.10	91.90	15.70	987.0/224300	1069.20
4824	152.40	76.20	76.2	38.13	187.50	104.60	19.00	1600.0/363632	1700.00

Contact us: We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

^{For more types,Please click here!}

Please click on the photos below to visit their websites.

Q:What is the strength of your company?
A:We have a engineer team,who have well experienced on products and machine designs.We can help you to solve the problem you meet.

Q:How about you quality?
A:We have our own prcoessional factory and worker,so believe that our products have advange over our competitors.

Q:What is you MOQ?
A:Minimum order quality is 1 piece.

Q:Could you produce customized product according to your drawing or sample?
A:Yes.We have abundant experience in the production of non-standard products.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.

We can accept a variety of payment.
1) TT, 30% deposit , 70% before shippment.
2) L/C at sight. (high bank charge, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amoun)
4) Small order by paypal.
