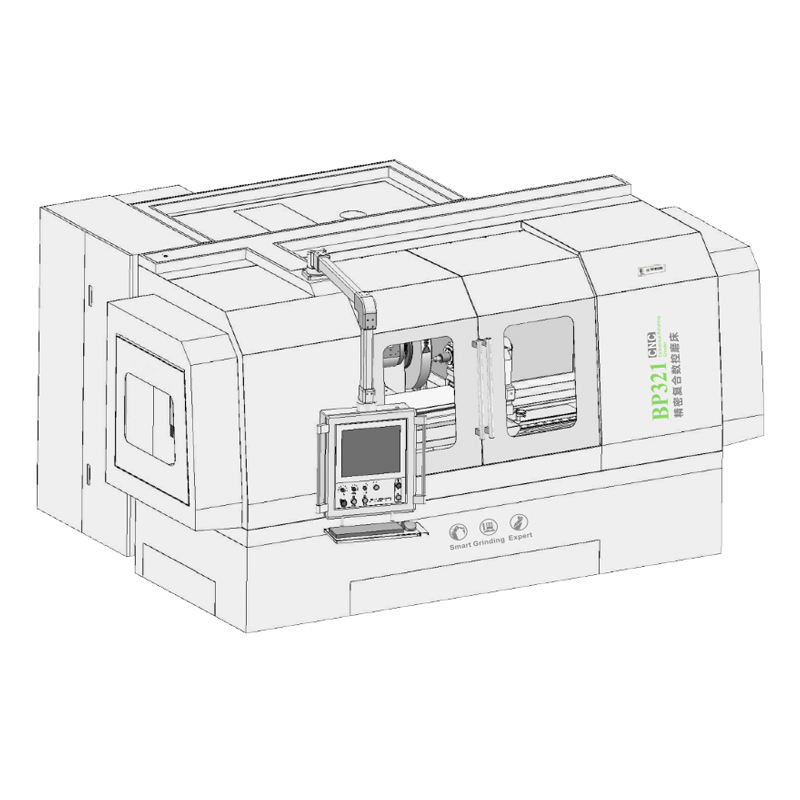

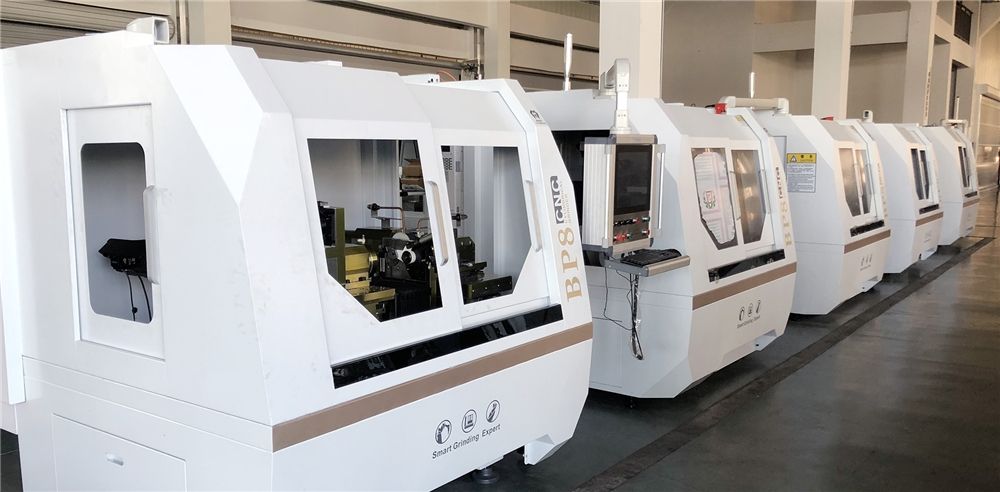

BP321 CNC OD & ID Machine

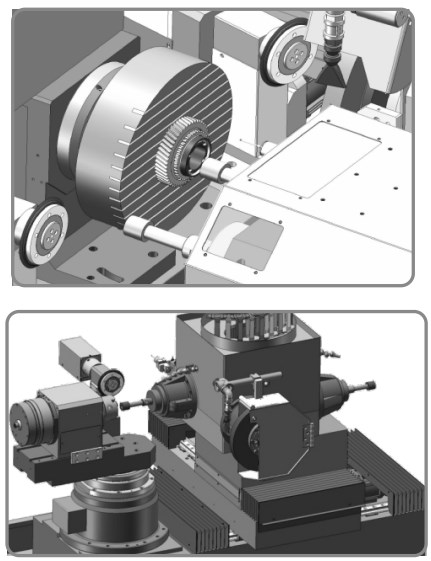

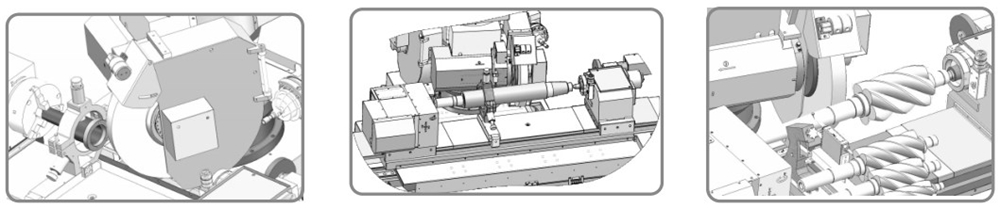

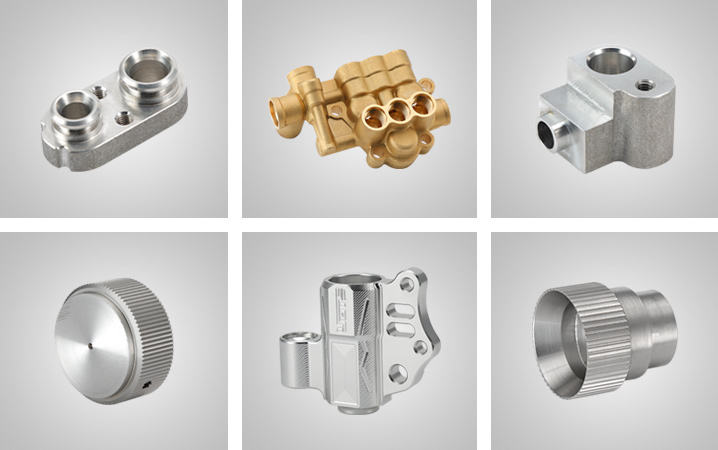

BP321 / BP22 precision CNC grinding machine are suitable for different sizeworkpiece internal diameter , outer diameter , step , taper , inside / outside endface , profiled surface grinding by one-time clamping Automatic loading andunloading system could be equipped to realize intelligent massproduction . The grinding accuracy and efficiency could be improvedsignificantly . Creative rotated turrent type spindle design , max 2 ODspindle , total 4 ID / OD spindle could be equipped , to realize multiple stationcomplex grinding . Select BEIPING patented three points casting / natural stonecomposite machine base , with good vibration absorption and thermaldeformation resistance . Workpiece headstock spindle equipped C axis , couldbe used for non-circle and thread grinding . Select direct drive / linearmotor , with Heidenhain scales , could control products grinding accuracyeffectively Adopted BEIPING MACHINE specific complex grindingsoftware , grinding program could be generated automatically by inputtingseveral parameters , operation is very simple Inteligent production systemintegration , high expanding flexibility , external programming and editing byremote controlling and remote diagnosis are available on the machine . BP321grinder could select serve drive center , to realize multiple special grinding skiby double drives precisely and efficiently . BP22 CNC grinding center workpieceaxis ( B axis ) could select manual and CNC direct drive axis to improve differentgrinding skill accuracy grade BP21 CNC grinding center adopts fixed grindinghead structure , improved the grinding rigidity , save grinding head adjustedtime , it is suitable for huge batch and high precise parts production

Grinding Spindle			System	BP/SYNTEC
Spindle Layout	horizontal	Grinding Scope
Spindle Quantity	3	Suitable size	axial type parts
Travel		workpiece diameter	6-100mm
X Axis	1180mm	workpiece length	20-300mm
Y Axis	380mm	workpiece clamping collet type	3 jaw chunk/specific chuck
Wheel headstock		Linear Axis Controlled Resolution	0.0001mm
Type	universal wheel headstock	Rotary Axis Controlled Resolution	0.0001
Rotation range	-15-225	Connected Loading	20kva
Manual rotation axis	2.5 degree teeth index	Machine Size
Automatic rotation axis	1 degree teeth index	Lengthxwidth	1800*1800
Drive power	11kw	Height	1800
Installation hole diameter	120mm	Machine Weight
Rotation speed	24000-120000rpm	Total Weight ( Depends on the Configuration)	5000kg
Scale(optional)	Heidenhain/Renishaw

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

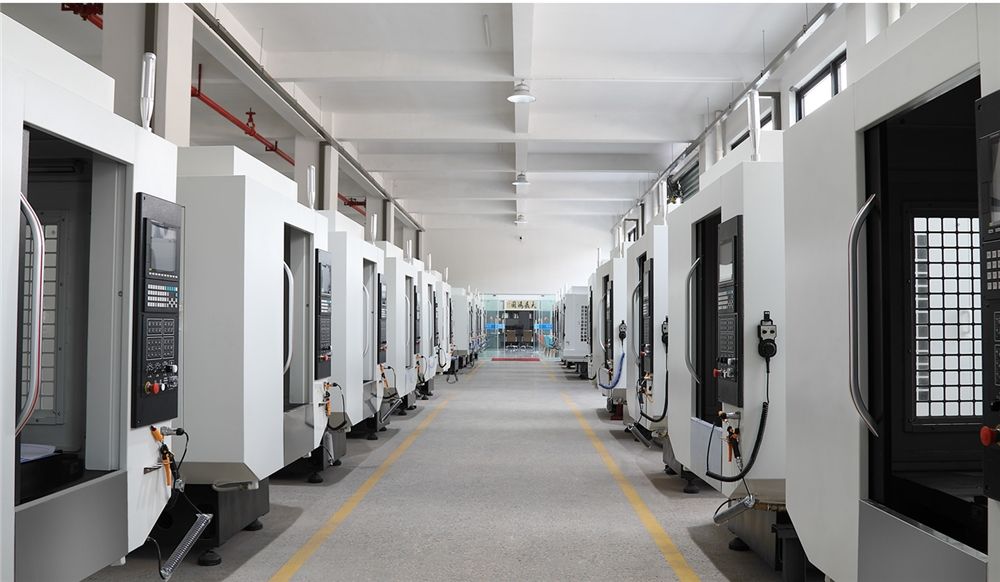

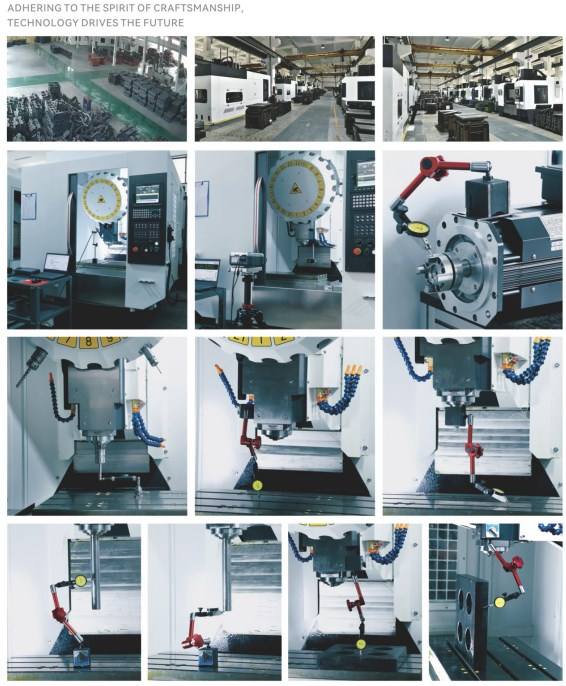

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
