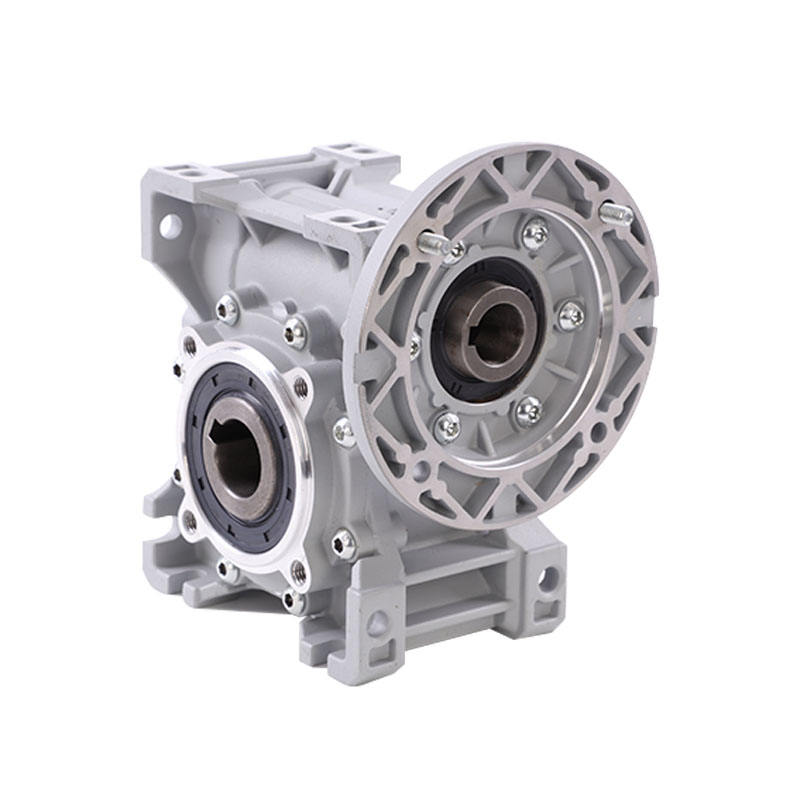

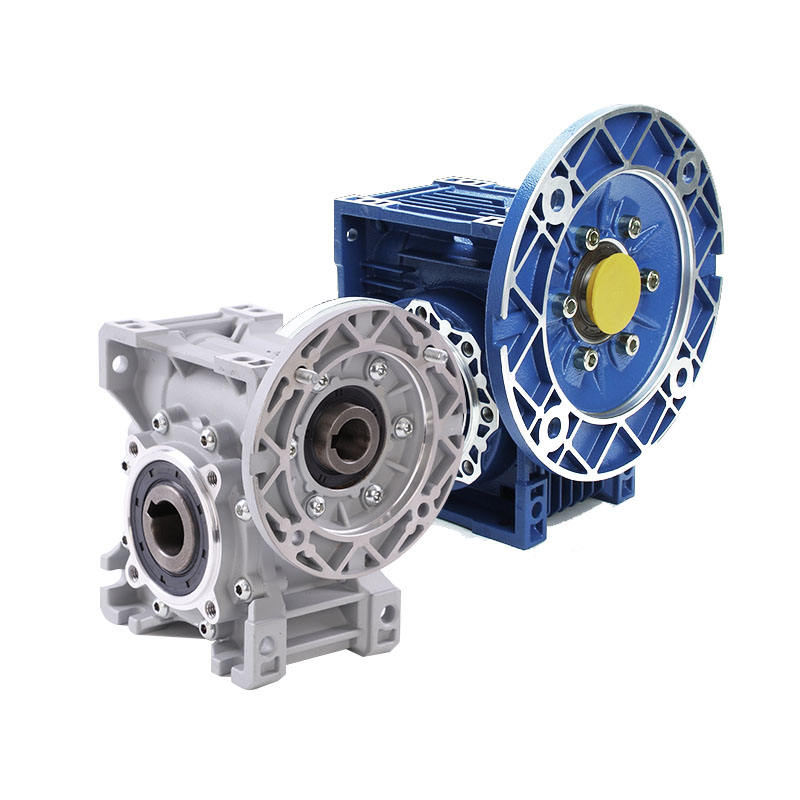

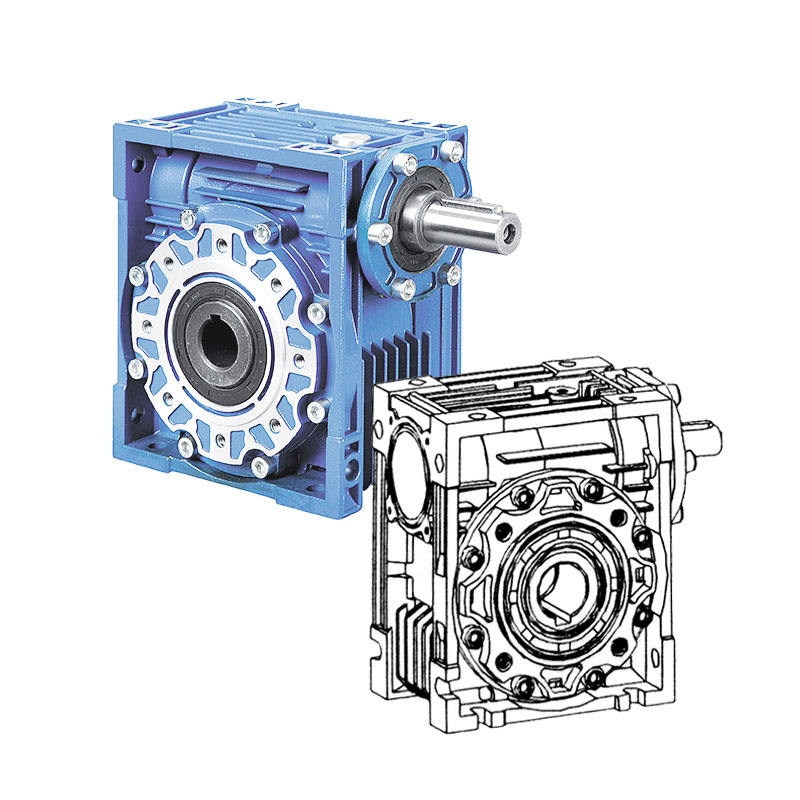

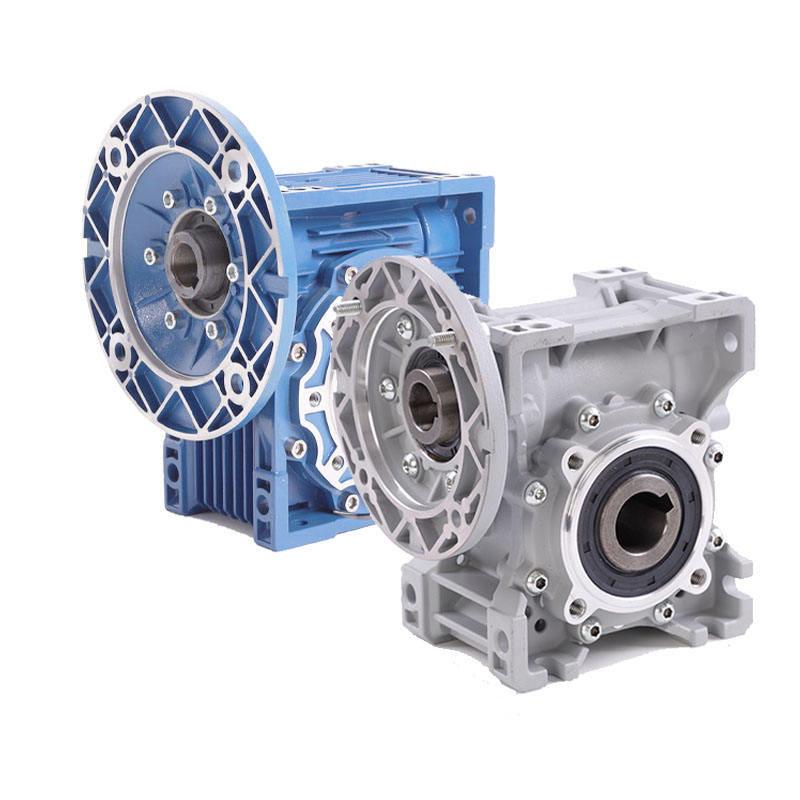

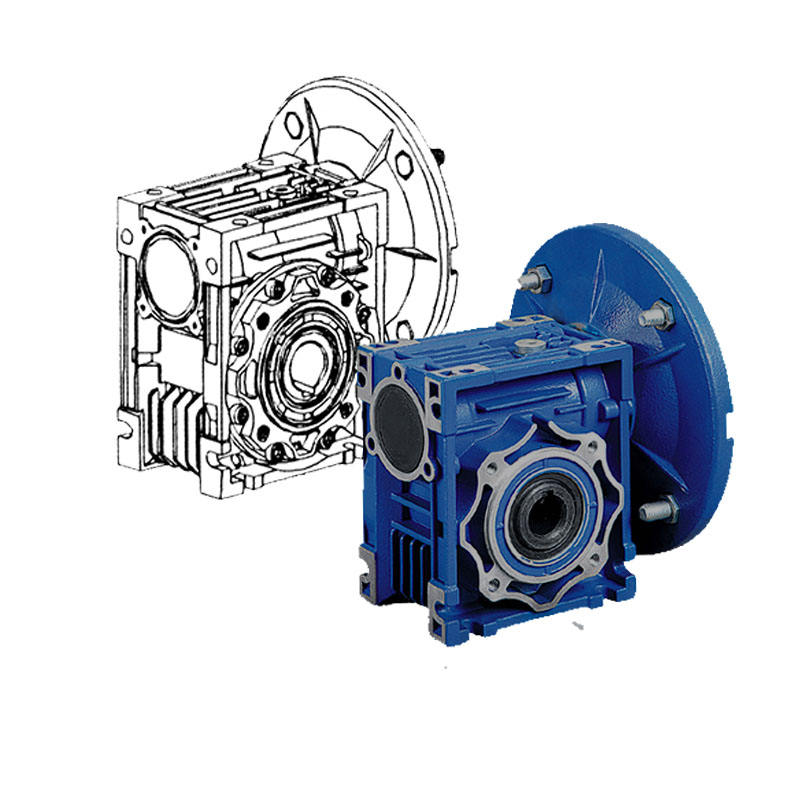

Aluminium Flange Motor Mount Hollow Shaft Output Worm Gear Box Speed Reducer

Product Information Product Information Please tell us what you need: 1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on 2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1 3, Confirm ......

Send Inquiry

Product Description

Product Information

Please tell us what you need:

1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on
2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1
3, Confirm the input hole and output size: please refer to the detailed size table for the specific size
4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one.
5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm
6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary: single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.

NMRV040:

Aluminium Flange Motor Mount Hollow Shaft Output Worm Gear Box Speed Reducer


   Type
  Worm Gear Speed Reducer / Gearbox / Reductor

  Model
  NMRV25/30/40/50/63/75/90/110/130/150/185

  Color
  Customized Color

  Packing
  Carton, Honey Comb Carton, Wooden Case with Wooden Pallet

  Usage
  Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.

  Flange
  IEC standard flange or customized dimensions

  Housing Material
  Aluminum&Cast iron

  Size
  11 sizes(WMRV25~WMRV185)

  Power
  0.06~22 KW

  Nominal torque
  ≤2548 N.m

  Ratio
  5~100

  For more models, please click here!

Warranty	3 years
Certification	CE
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Gearing Arrangement	Worm
Output Torque	13-1379
Input Speed	1400(4pole)
Output Speed	14-187
Place of Origin	China
China	Zhejiang
Brand Name	EPG
Worm Speed Reducer	OEM is welcome.
Color	blue or gray or according to customer require
Mount position	Foot mounted, flange mounted
Input Form	IEC flange for mounting motor, solid shaft
Output Form	Solid shaft, hollow shaft
Material	Aluminium/Cast Iron Housing
Quality Control System	ISO9001:2008

Product Display
