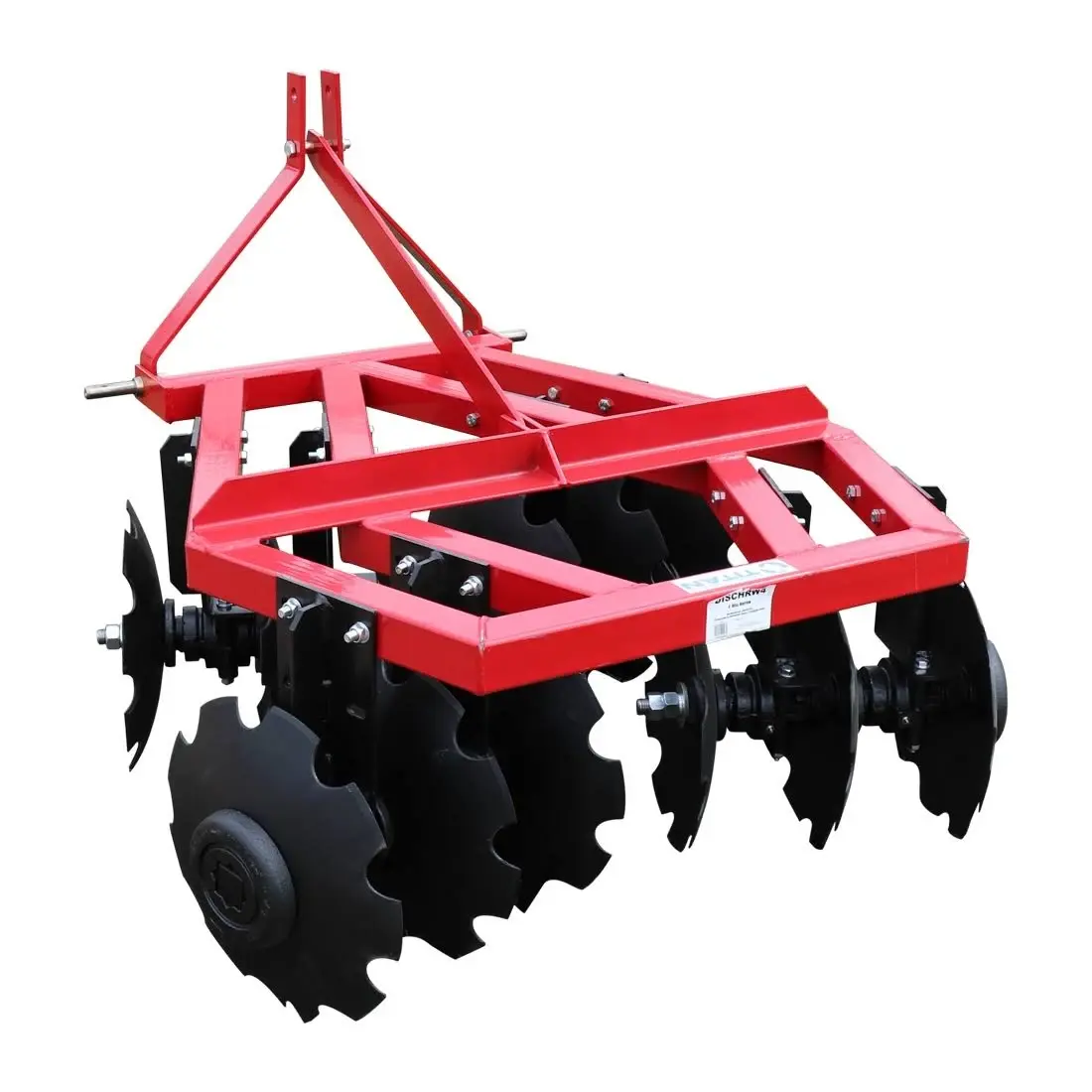

HEAVY DUTY DESIGN: The 60” Disc Harrow is constructed using 2.5” x 2.5” steel tubing that is powder coated to prevent rust and corrosion. The 16” notched discs are made from hardened steel. The 4 disc axles are equipped with cast iron bearing caps and spools that are greaseable.
16” NOTCHED DISCS: The 16” discs are notched to help break up wet, heavy soil with less gumming up and can power through heavier crop debris. These blades are great for land that has not been tilled in the past and are perfect for breaking up weed root systems allowing them to breakdown faster.
A MUST HAVE FOR YOUR FIELD: The Titan Attachments 60” Disc Harrow with notched blades is a must have for anyone looking for an affordable way to turn the soil in your field. Break up unwanted weeds and debris to prepare the soil for planting.
CATEGORY 1, 3 POINT: This adapter comes ready to attach directly to your Tractor’s Category 1, 3Pt hitch without any modifications, bolting or welding required. Back your tractor right up to the back of the adapter, hook into the top link bar and connect your lower lift pins. It is that easy!
DIMENSIONS: The overall dimensions of the cat 1, 3 point 5’ disc harrow are 60” wide x 45” deep x 30.5” high. The notched discs will be 16” in diameter and spaced 7.5” apart. The lower lift pins on the 3 point hitch are 3.5” long and measure 28” apart, center to center.
Weight
555 LB
Overall Width
60"
Overall Height
30.5"
Overall Depth
45”
Tubular Steel Frame
2.5” x 2.5”
Lower lift Pins
28” Center to Center, 3.5” Wide
Disc Diameter
16”
FEATURES: - 60” working width. - 16” notched hardened steel discs. - Designed for tractors with Cat 1, 3 Point. - Powder coated steel frame to prevent rust and corrosion. - Lower lift pins are included. - Great for breaking up weeds, roots, crop debris and remainder. - Discs are spaced 7.5” apart. - Discs are concaved to allow them to loosen and lift the soil as it cuts.
