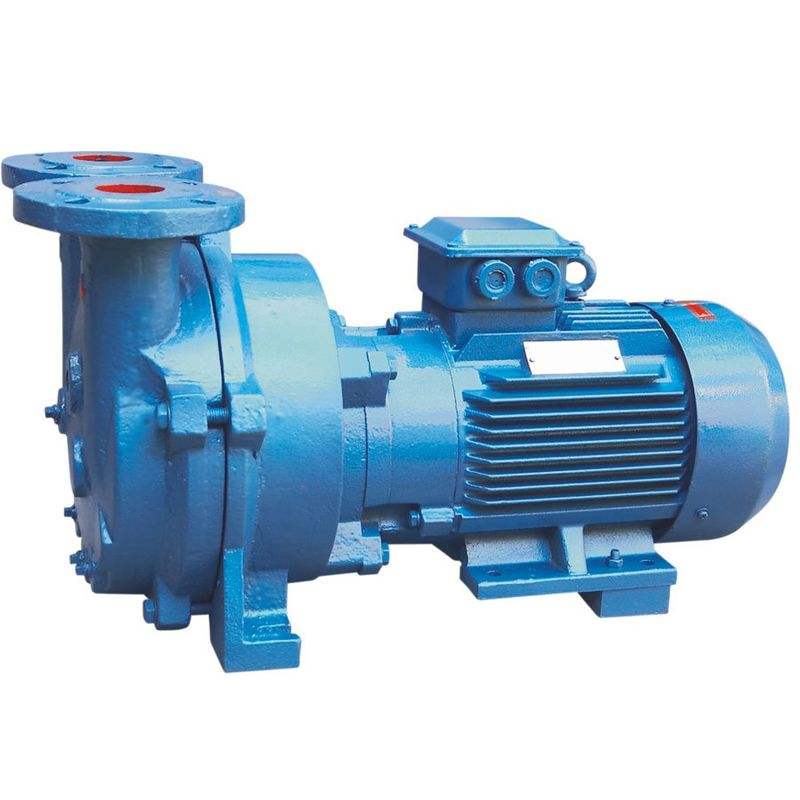

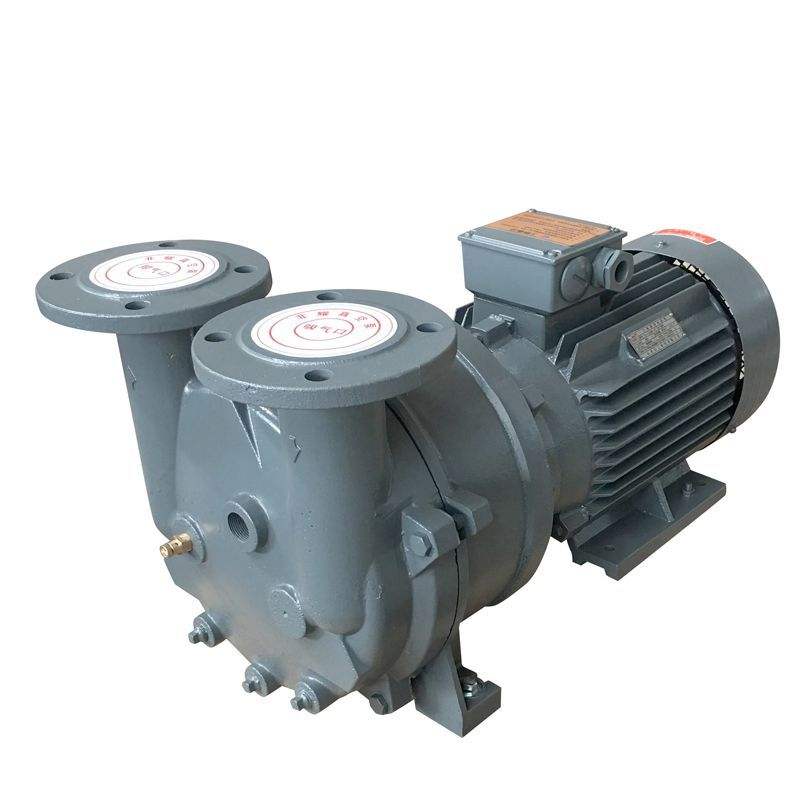

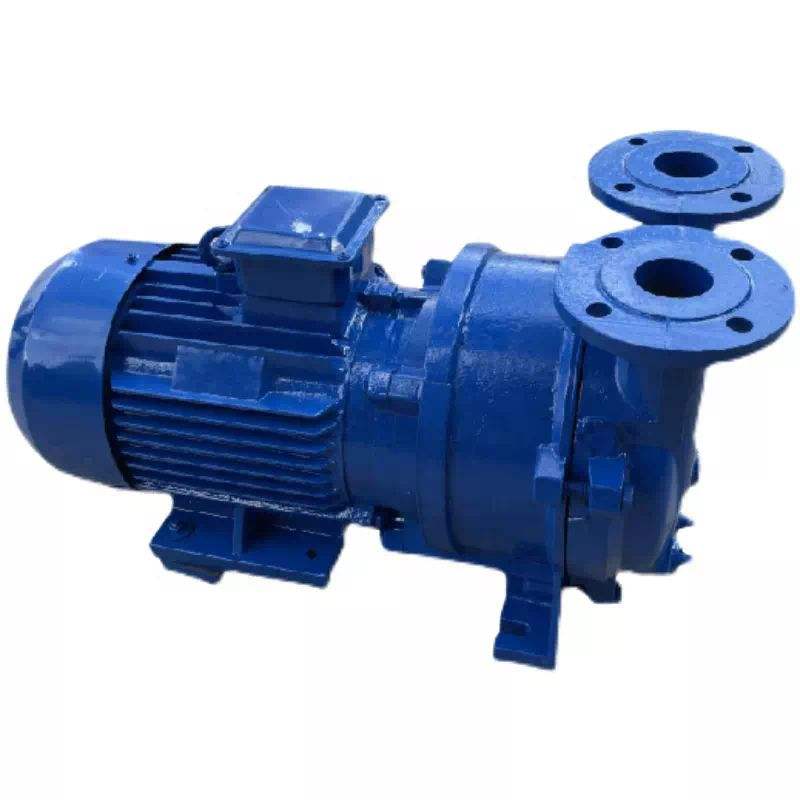

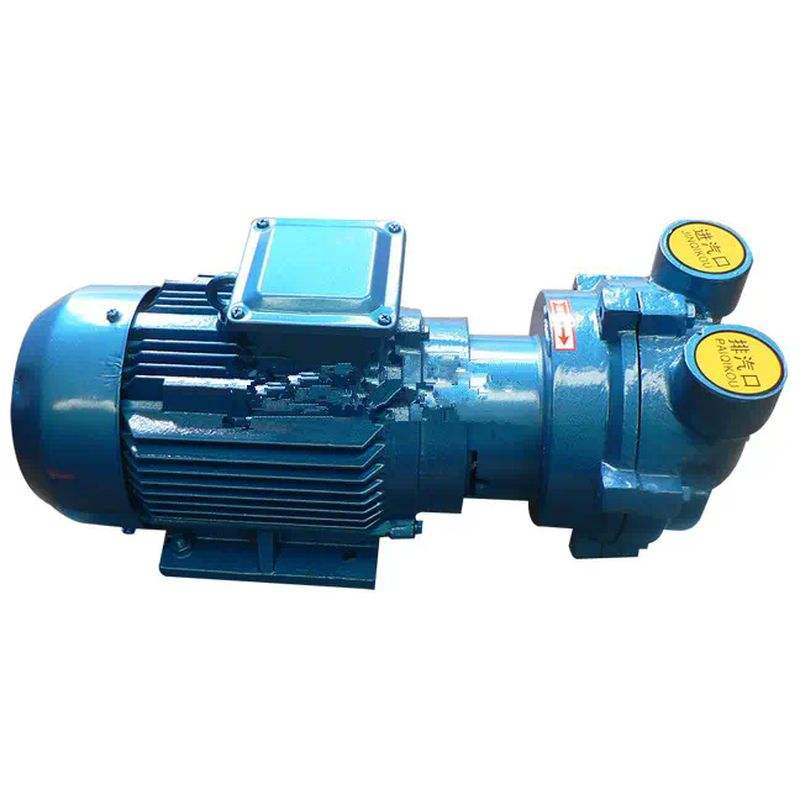

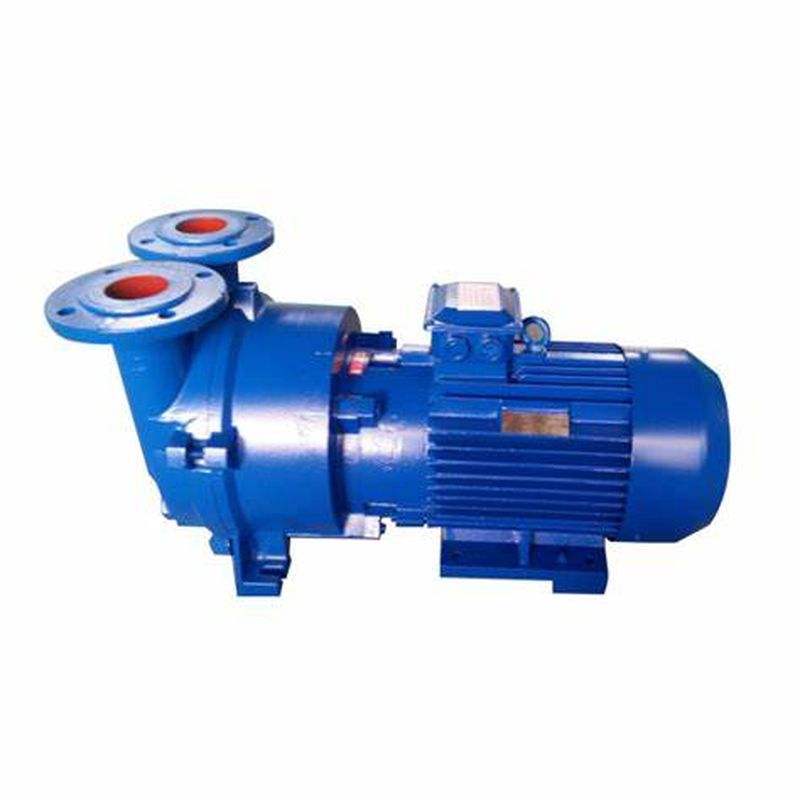

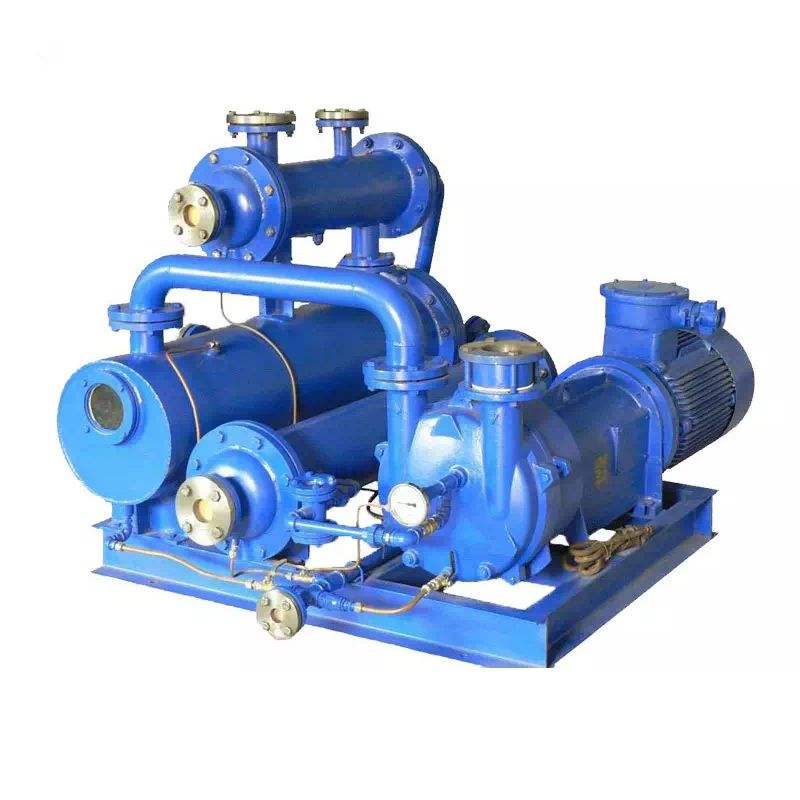

2BV Series Stainless Steel Single Stage Water/Liquid Ring Vacuum Pumps With Gas-water Separator
2BV Series Water/Liquid Ring Vacuum Pumps2BV series water ring vacuum pumps (liquid ring vacuum pumps) are suitable for pumping gases and steam. Its suction pressure can reach 33mbar (abs) (i.e., 97 % vacuum degree). If the transformer oil is used as the operating liquid, these pumps are called oil ......

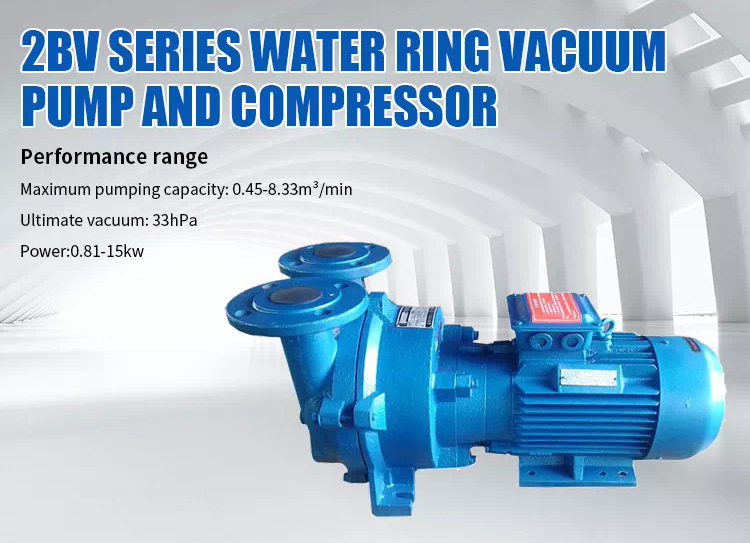

2BV series water ring vacuum pumps (liquid ring vacuum pumps) are suitable for pumping gases and steam. Its suction pressure can reach 33mbar (abs) (i.e., 97 % vacuum degree). If the transformer oil is used as the operating liquid, these pumps are called oil ring vacuum pumps, and the suction pressure can reach 6.7mbar (abs) (i.e., 99 % vacuum degree). So the oil ring vacuum pumps can replace the reciprocated vacuum pumps completely. When the liquid ring vacuum pumps work under the condition near the little vacuum for a long time, it is necessary to couple it with the cavitation protection pipe to get rid of the screaming and protect the pump. When the compressor works, the maximum pressure is 0.26MPa (abs). And the higher the discharge pressure, the larger the compressors' power. So the data on the discharge pressure must be provided to choose the proper motor.
2BV2 and 2BV6 series water ring vacuum pumps and compressors are mainly used for pumping explosive gases or working in flammable and volatile environments. The technical parameter of each type is the same as the corresponding type of the 2BV2 or 2BV5 series products.
2BV series water ring vacuum pump possesses the characteristics below:

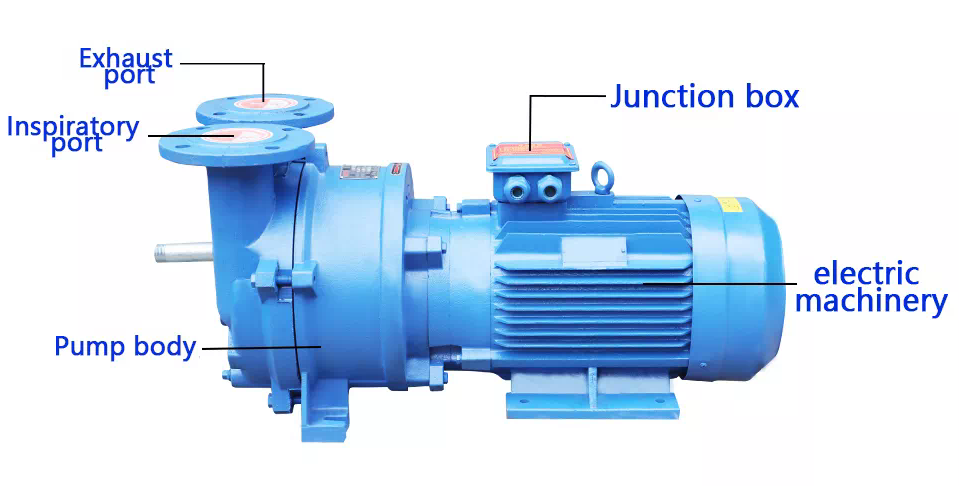

1. The close-coupled design is convenient to install and can save space;
2. The standard seals are all used the John Crane mechanical seals;
3. 2BV series products have the cavitation protection port. When they work under the condition near the limited vacuum, the cavitation protect port opens (or connects with the separator)to get rid of the screaming to protect the pump;
4. Aluminum bronze impeller is of high intensity and wearing well. The erosive-proof capacity of the pump can be improved by using it. If the parts where the liquid flows are made of stainless steel, the pumps can be used under the more rigorous condition;
5. The unique design of the discharge port can protect the pump from the over-pressure to ensure the best efficient performance in the working range of the pump;
6. The motors are all adopted Y2 series products. The protection class is IP54 or IP55 (normal is IP44) and the insulation grade is F;
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
