25 32 32W 33 42 50H 51 52 55 62 62A 62H 67H 67XH 67W 70 72 S Agricultural Detachable Chain

Raydafon detachable chain is made from special analysis hot rolled strip steel. The links are precision formed for pitch uniformity and heat treated to assure high strength and long wear life. The links can easily be assembled or disassembled by flexing the chain and tapping the link in or out.The c......

Send Inquiry

Product Description

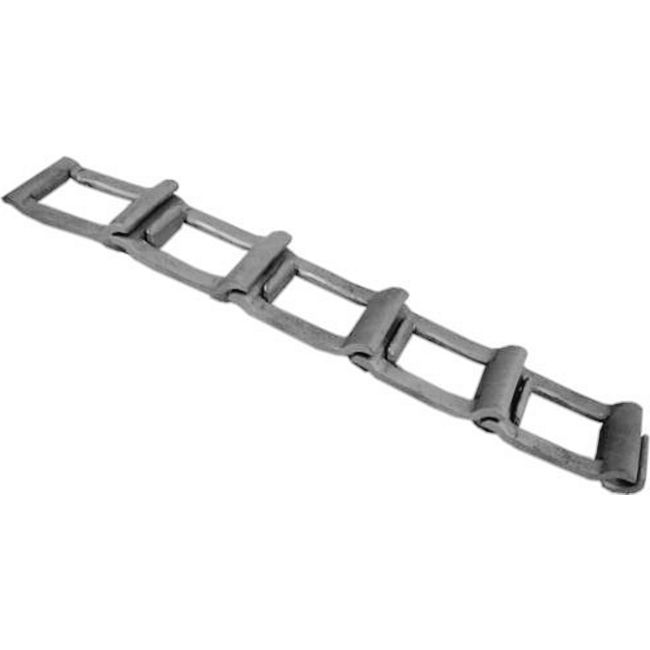

Raydafon detachable chain is made from special analysis hot rolled strip steel. The links are precision formed for pitch uniformity and heat treated to assure high strength and long wear life.

The links can easily be assembled or disassembled by flexing the chain and tapping the link in or out.The chain should always be operated with the closed side of the barrel against the sprocket.

Steel detachable chain is de- signed for moderate loads and speeds. Plain chain is used for transmission drives and with interspersed at- tachments for conveying applications. This type of chain is very economical and easy to install and repair.

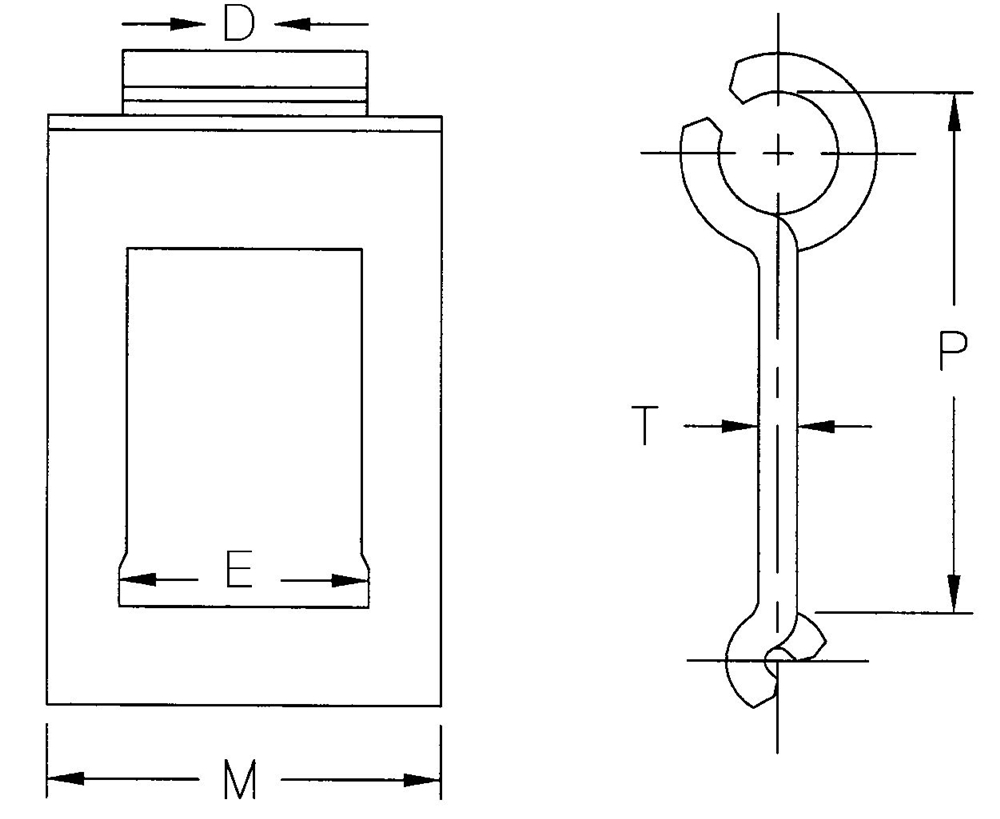

Chain Number	Links in 10 Feet	Approx. Wt. Lbs. Per 100 Ft.	Average Ultimate Strength Lbs.	Minimum Tensile Strength Lbs.	P	M	E	D	T
25	133	20	950	760	.904	.703	.438	.422	.073±.006
32	104	32	1650	1320	1.157	.938	.610	.594	.090±.006
32W	104	39	1650	1320	1.157	1.063	.610	.594	.079±.006
33	86	39	1650	1320	1.402	1.938	.627	.610	.095±.006
42	87	50	2300	1680	1.375	1.219	.800	.781	.105±.006
50H	87	63	2600	2240	1.375	1.281	.798	.781	.125±.006
51	106	40	2100	1680	1.133	1.094	.720	.703	.105±.006
52	80	66	2700	2160	1.508	1.406	.760	.840	.125±.006
55	74	62	2800	2240	1.630	1.281	.813	.796	.125±.006
62	73	90	4200	3520	1.654	1.563	1.002	.984	.148±.007
62A	72	131	5500	4000	1.664	1.938	1.002	.984	.172±.007
62H	73	112	4400	3600	1.654	1.875	1.002	.984	.148±.007
67H	52	137	5500	4400	2.313	1.875	1.110	1.093	.185±.007
67XH	52	145	6800	5500	2.313	1.875	1.110	1.093	.200±.010
67W	52	144	4800	3800	2.313	2.375	1.110	1.093	.148±.007
70	60	130	4800	4000	2.013	1.938	1.110	1.093	.172±.007
72	59	131	4800	4000	2.025	1.938	1.110	1.093	.172±.007
S	41	130	4800	3840	2.906	1.938	1.116	1.093	.172±.007
721⁄ 2	73	115	4500	3600	1.643	2.000	1.172	1.156	.148±.007
