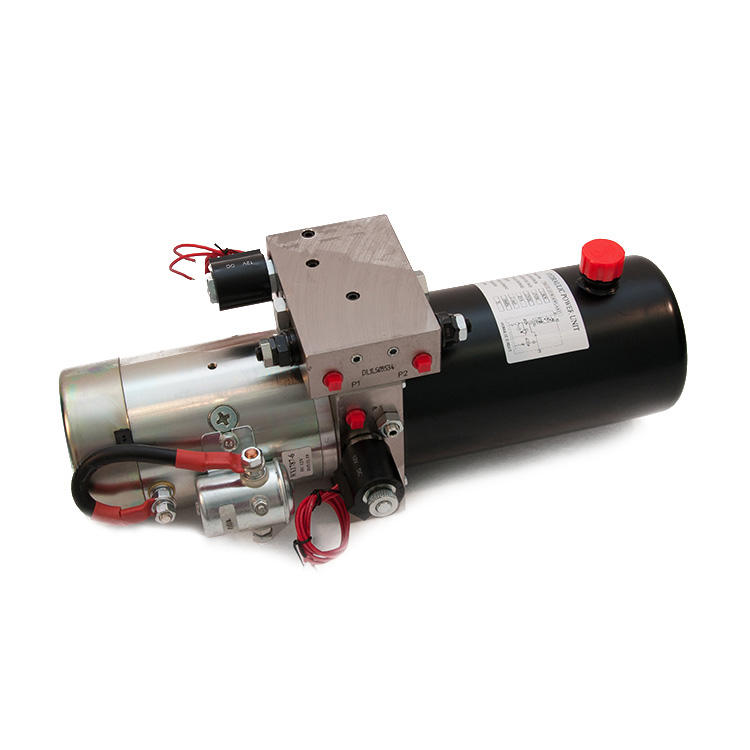

12 Volt DC Electro Hydraulic Power Unit for Snow Plows

This units consists of a pressure balanced gear pump, DC motor, Multi Functional Manifold, solenoid valves, steel tank, etc. The lowering speed can be controlled by an adjustable needle valve. The left and right functions are equipped with a dual pilot operated check valve and cross over relief valves.

This power unit has two circuits:

Power up / gravity down, single acting circuit to lift and lower the plow. (Port 3)

Double acting left/right. This means left/right needs to be powered by a double acting cylinder on your plow. (Ports 1 & 2)

Motor Voltage: 12 VDC

Motor Power: 2 HP

Displacement: ,129 cubic inch/rev.

System Relief Pressure: 2610psi

Tank Capacity: .53 Gallons.

Length: 17.32 inches overall length.

Mounting holes: 3/8 x 16UNC on a 3-1/4 Center.

Fits: Meyers/Western and many many others!

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.

Also I would like to take this opportunity to give a brief introduction of our Raydafon company:
Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.
We have exported many products to our customers all over the world, we have long-time experience and strong technology support.
Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN ,KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall

......

-Ø Our Company with over twelve year's history and 1000 workers and 20 sales.
-Ø With over 100 Million USD sales in 2017
-Ø With advance machinery equipments
-Ø With large work capacity and high quality control, ISO certified.

......

you also can check our website to know for more details, if you need our products catalogue, please contact with us.
