Promotional Various 7000lbs A2X Trailer 2 Forged a Frame Coupler
Product FeaturesA2X Trailer A Frame ConnectorWhen ordering raw materials, you may see slight rust and oil that needs to be cleaned upon arrival.Specifications:For 2 "hitch ballSpring loaded collar50 A-frameThin latch7000 pound capacityFeatures:The gate sleeve locking coupler adopts a cast coupl......

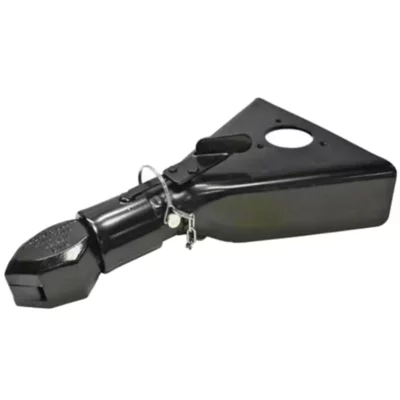

A2X Trailer A Frame Connector
When ordering raw materials, you may see slight rust and oil that needs to be cleaned upon arrival.
Specifications:
For 2 "hitch ball
Spring loaded collar
50 A-frame
Thin latch
7000 pound capacity
Features:
The gate sleeve locking coupler adopts a cast coupler head, which is different from the coupler heads manufactured by other manufacturers.
Its symmetrical, straight, two angled, and flat top shape allows for the use of self adjusting coupler heads, making coupling and decoupling easier.
Equipped with durable black powder coating.
All cast head couplings include all SAE required markings and comply with J684 standard.
Capacity:
7000Lbs
Description:
2''forged A-frame

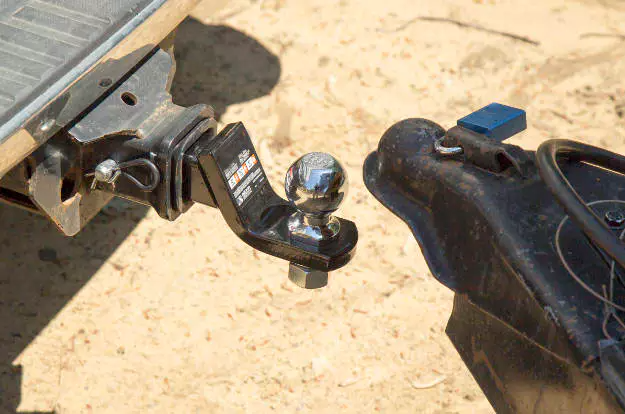

What size trailer ball do I need?
The size of the trailer ball required for towing settings will be determined by three things: your coupling size, trailer ball hole diameter, and towing capacity.
In short, the diameter of your trailer ball must match the size of your coupling, the diameter of the trailer handle must match the ball hole, and the weight must be sufficient to safely tow the trailer.
Step 1: Match the ball with the size of the coupler
When selecting a trailer ball, first select the ball diameter by matching it with the coupling size. Most manufacturers stamp or mark the correct trailer ball size on the joint.
Before towing, ensure that the joint and trailer ball joint are securely connected and make all necessary adjustments.
Want a coupler without complex pins?
A2X trailer 2-inch forged A-frame coupler 7000 pounds
Step 2: Match the handle with the trailer ball hole
The holes on the spherical bracket or bumper hitch platform are the locations for fixing the trailer spherical bolts. It is important to understand the diameter of this hole so that you can choose a trailer ball with a matching rod diameter.
If the trailer handle is too small, it will move and may become loose during towing. If the connecting rod size is too small for the trailer ball hole, a reducer bushing can be used to compensate for the difference.
Step 3: Match the carrying capacity of the traction system
When selecting a tow ball or any towing accessory, weight capacity must always be considered. The rated weight of trailer steel balls will be listed as the ball capacity. Please note that this will reflect the total weight limit of the trailer, not the weight of the tongue.
You must select a trailer ball with a capacity that exceeds the total weight of the trailer.
For more details, please click here to contact us!
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
Hot Tags: Promotional Various 7000lbs A2x Trailer 2 Forged A Frame Coupler - Buy A2x Trailer 2 Forged A Frame Coupler,Trailer Coupler,7000lbs A2x Trailer 2 Forged A Frame Coupler Product on Raydafon
