High Efficiency Automatic CNC Four Axis Hob Sharpening Machine for Various Types Straight Groove Hobs

Send Inquiry

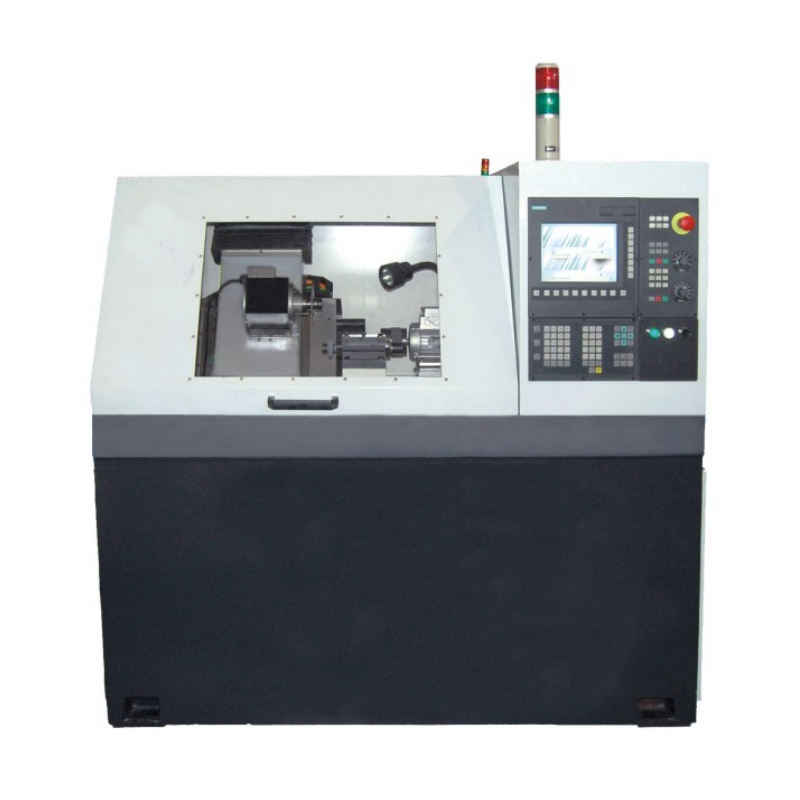

Product Description

The CNC shovel grinding machine adopts LYNUC N3 (four axis)/N5 (five axis) system three linkage control; The indexing heads are all controlled by imported high stability direct drive torque motors, forming a full closed-loop system. The grinding spindle adopts a high-power, high torque, and high speed electric spindle, which not only ensures machining accuracy but also considers grinding speed; The five axis open edge grinding uses diamond rollers for online adjustment of various tooth profile front edge shapes of the grinding wheel through dual axis interpolation and fully independently developed GPM modification software. The machine tool is fully enclosed in design, with a beautiful appearance. Wet grinding is not only equipped with external devices such as filtration system, internal circulation cooling device, oil mist suction device, etc., but also has software settings such as left and right end indexing, whether to retract the tool and teeth, and preset grinding.

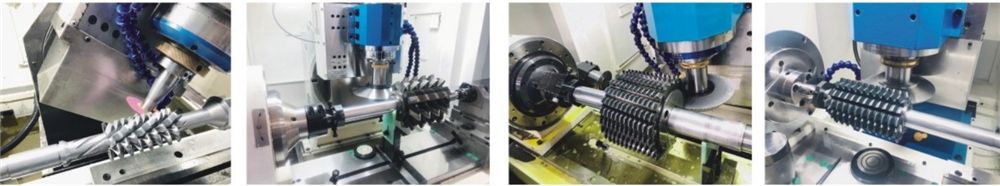

Applicable scope Four axis open edge grinding is suitable for grinding various types of straight groove hobs (both high-speed steel and hard alloy materials can be used).

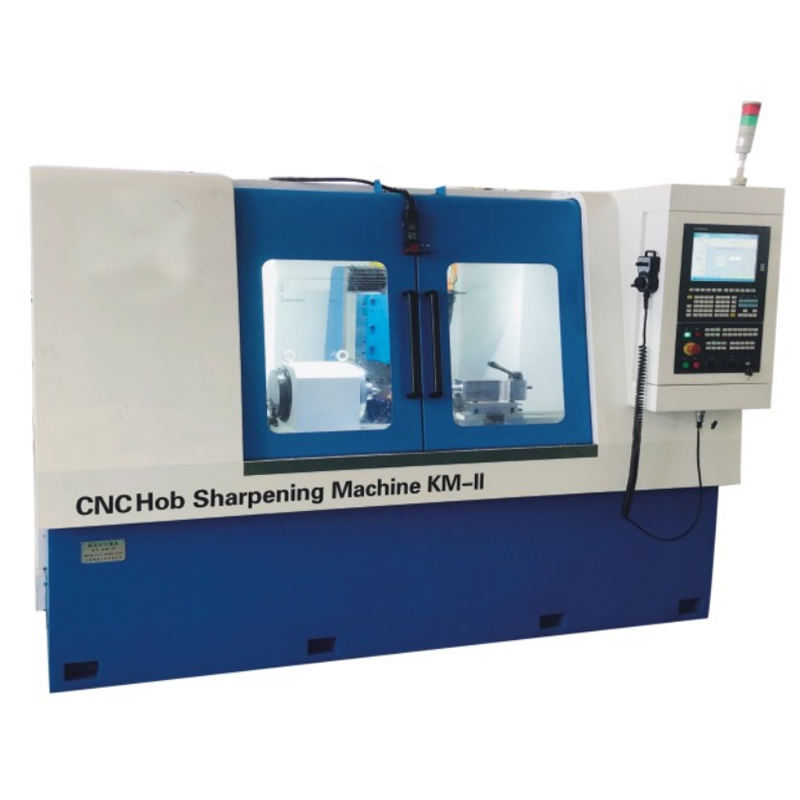

4-axis

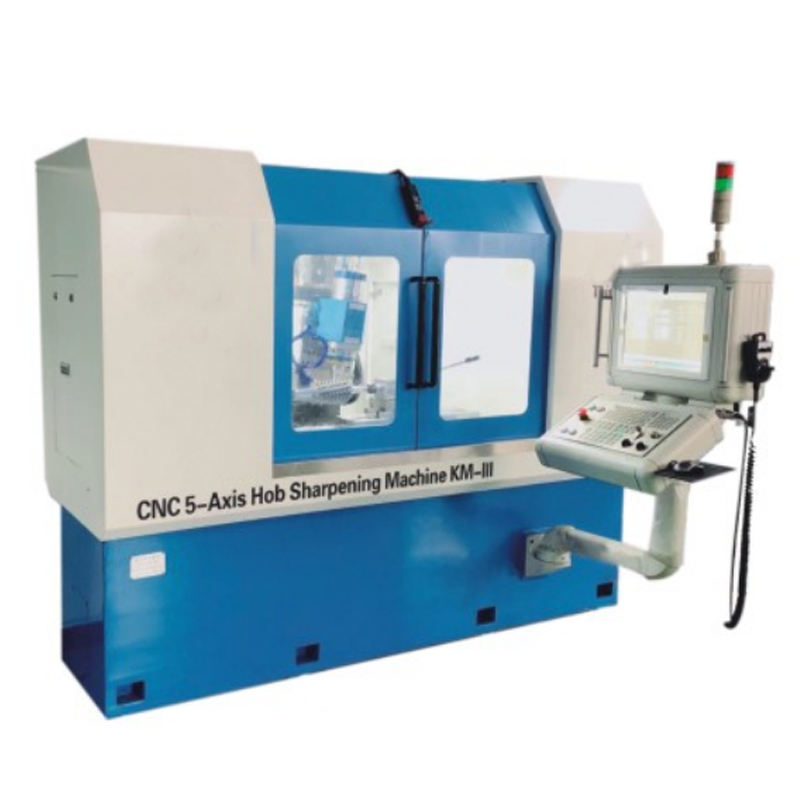

5-axis

	KM-ll+(four axis)	KM-lll(five axis)	KM-L(5-axis large specification)
Center Height	165mm	165mm	250mm
Center Distance	520mm	620mm	750mm
Hob Diameter	Φ220mm	Φ220mm	Φ400mm
Max Effective Length	350mm	525mm	730mm
Maximum modulus	M12	M12	M25
Heads	Any	Any	Any
Lead Angle	0°	±45°	±45°
Spindle interface	HSK C63	HSK C63	HSK C63
Accuracy	DIN3968 AAA	DIN3968 AAA	DIN3968 AAA
Table Transverse Strokt	Z=500mm	Z=580mm	Z=800mm
Wheel Longitudinal Stroke	X=200mm	X=200mm	X=340mm
Grinding Spindle	10kw,Max.10000rpm	22kw,Max.15000rpm	22kw,Max.15000rpm
Max.Grinding Wheel	Φ32xΦ175	Φ32xΦ175	Φ50xΦ300
CNC System	LYNUC N3	LYNUC N5	LYNUC N5
Power	3AC 380V 20KVA	3AC 380V 30KVA	3AC 380V 40KVA
Main Machine Size	2550×1630×1850mm	2700×1650×1900mm	3450×1900×1000mm
Main Machine Weight	3500kg	4500kg	7000kg

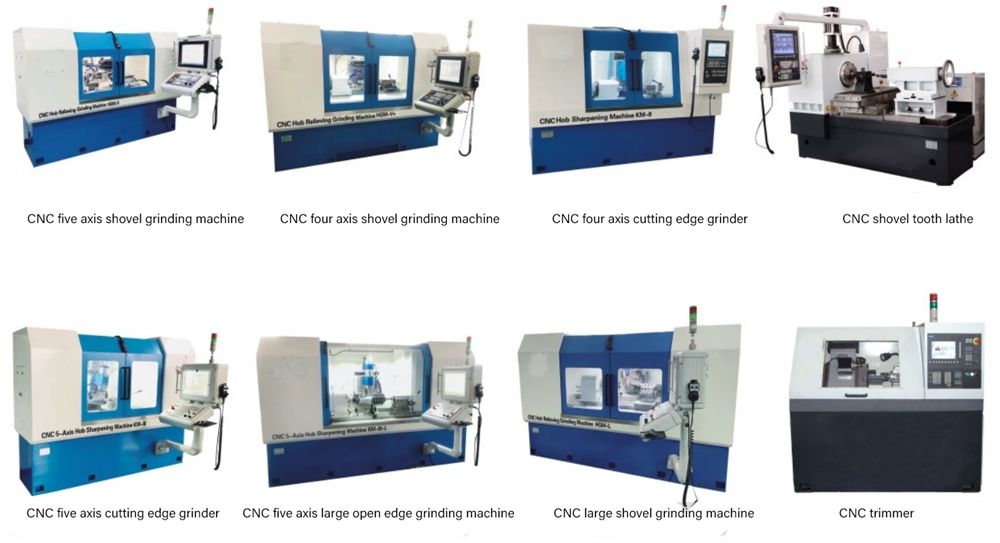

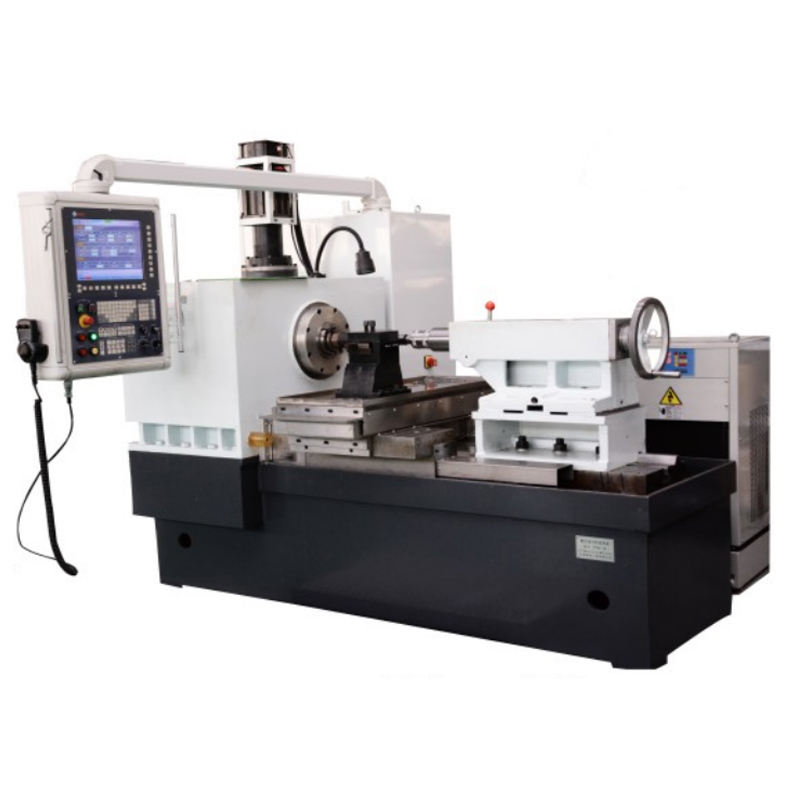

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.

For more models or customization, please click here!

Hot Tags: High Efficiency Automatic Cnc Four Axis Hob Sharpening Machine For Various Types Straight Groove Hobs - Buy Hob Sharpening Machine,Forming Gear Grinding Machine,Cnc Four Axis Hob Sharpening Machine For Various Types Straight Groove Hobs Product on Raydafon
