F series Helical gearboxF series gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelicalgears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,theprocess of carburizing and quenching, grinding ,whi......

Send Inquiry

Product Description

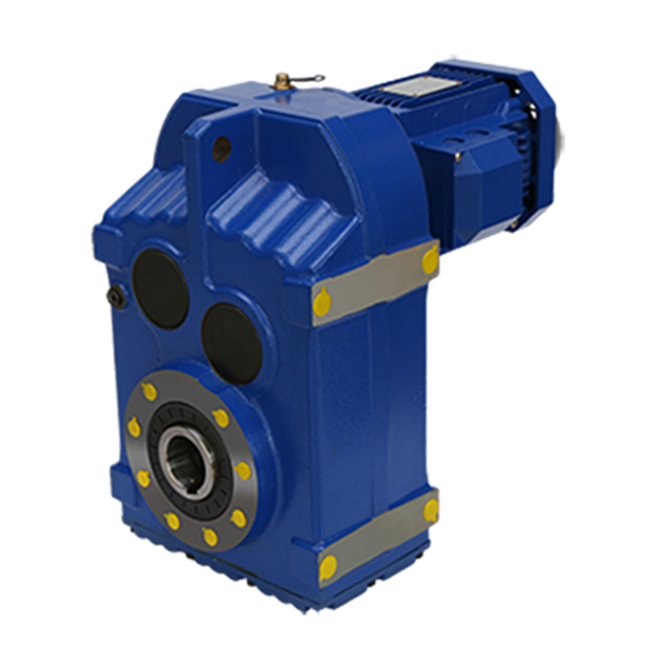

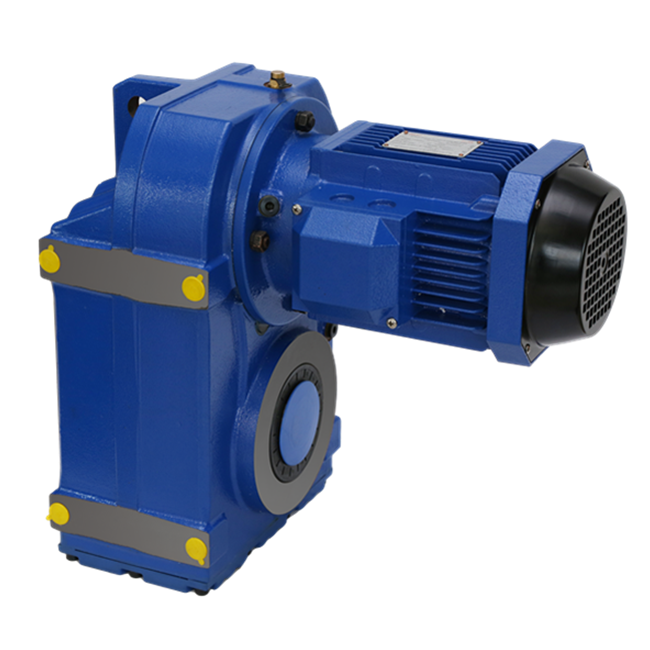

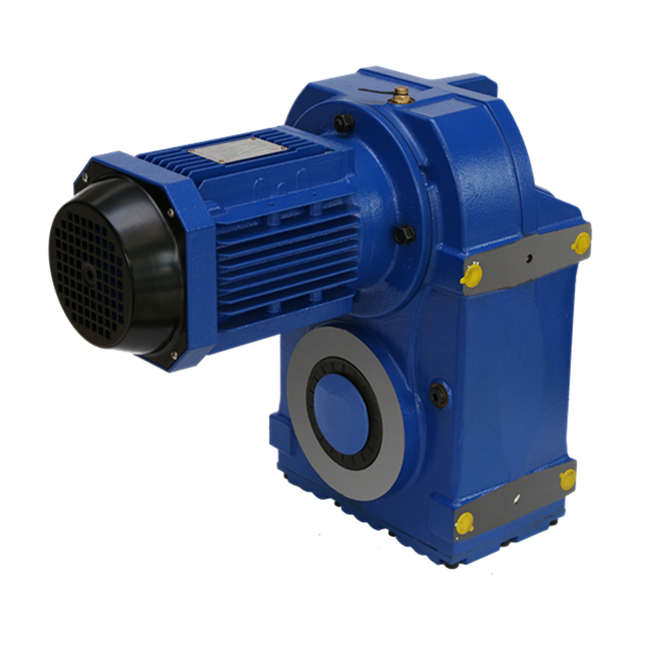

F series Helical gearbox

F series gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelical
gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the
process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise
and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , Pharmacy ,Agriculture equipment and Oil industry

Specifications:

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m

3) Motor power: 0.12~200kW

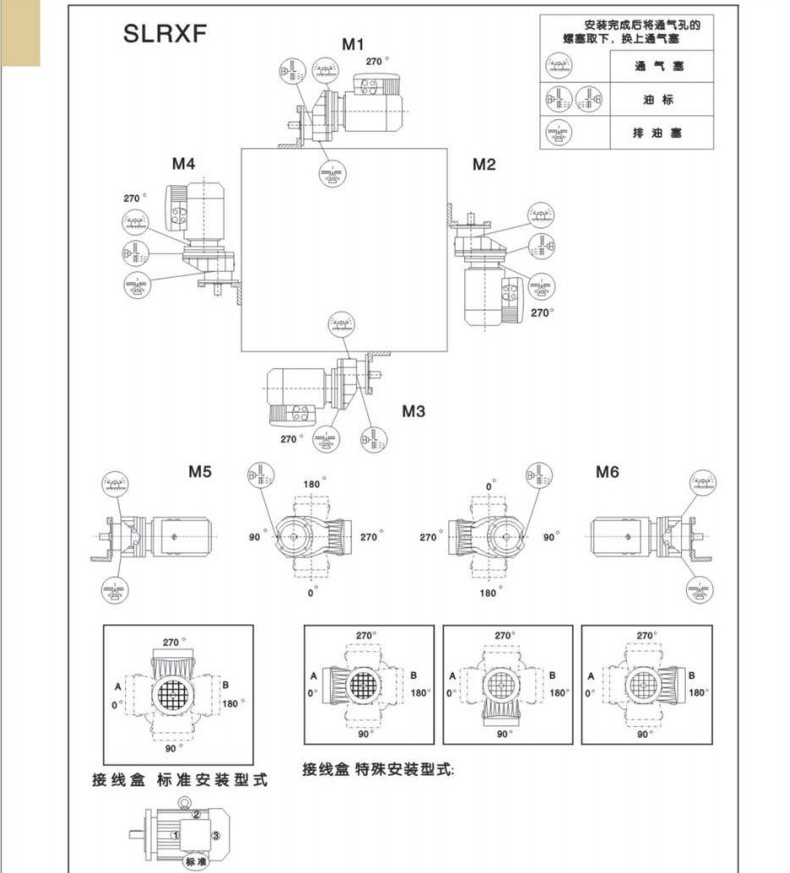

4) Mounted form: foot-mounted and flange-mounted mounting

Right elevation

Left elevation

Front elevation

No	Item
Product Name	SLK Series Rigid Tooth helical bevel reducer
Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Color	Customized
Noise Test	65~70dB
Efficiency	94%~98% (depends on the transmission stage)
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on
Brand of oil seal	NAK or other brand
Temp. rise (MAX)	40 °
Temp. rise (Oil)(MAX)	50 °
Vibration	≤20µm

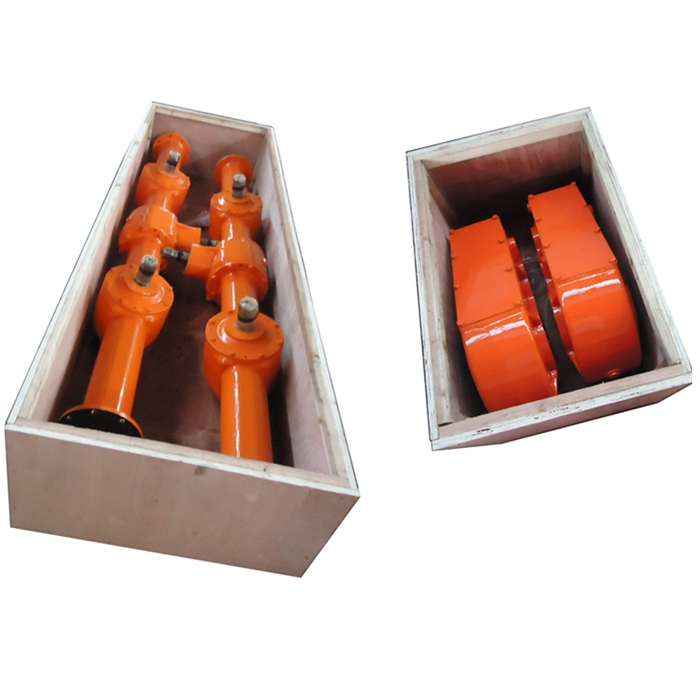

Packing Details: Standard carton/Pallet/Standard wooden case
Delivery Details : 7-20 working days upon payment

ABOUT US

Established in 1985, EP TRANSMISSION MACHINERY CO., LTD is a high and new technology enterprise engaging in research, develop
and manufacture for reducer & speed variator, one of the director member of China Reducer Association of China General Machinery.

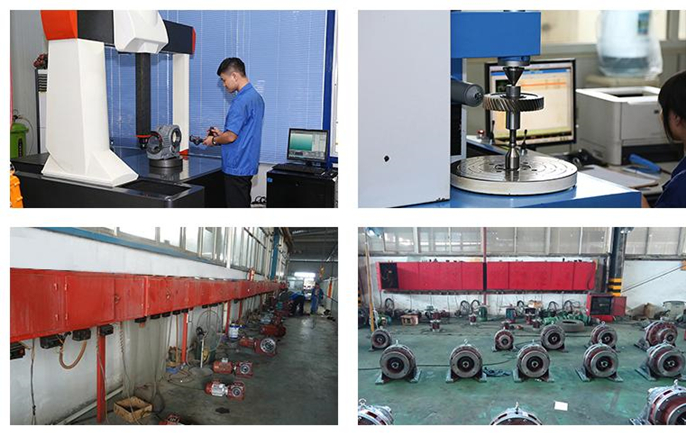

It covers more than 40,000 square meters, has more than 400 staff , 20% of whom are technicians, equipped with more than 300 sets
the most advanced accurate numerical control equipment, including German HOFLER forming gear grinding machine to improve quality.
set up more than 30 national sales branches to serve our customers in time and thoroughly.
Our products also exported to more than thirty countries main in Europe, Asia America, and Africa, with high reputation.

CHANGCHAI high power engine

Imported EATON control valve

Japan Shimadzu hydraulic motor

Project in Thailand

Project in India

Project in Russia

1.Payment Term: TT, L/C
2.Delivery time: about 30 days from receive payment.
3.We accept customized products as per your special requirement.
4.Guidelines for the Selection:Usually we can select one machine which is suitable for you with some informations from you,such as
ratio/motor speed/mounting dimension/ out torque etc.
5.If the minimum order amount is in excess of $10000, there are preferential.

Q1: What information should I tell you to confirm the product?
A:Model/Size, Transmission Ratio, Shaft directions & Order quantity.

Q2: What can i do if I don't know which one I need?
A:Dont worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q3: What is your product warranty period?
A:We offer one year warranty since the vessel departure date left China.

Q4: Are you trading company or manufacturer ?
A: We are factory.

Q5: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q6: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q7: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
