Product Description

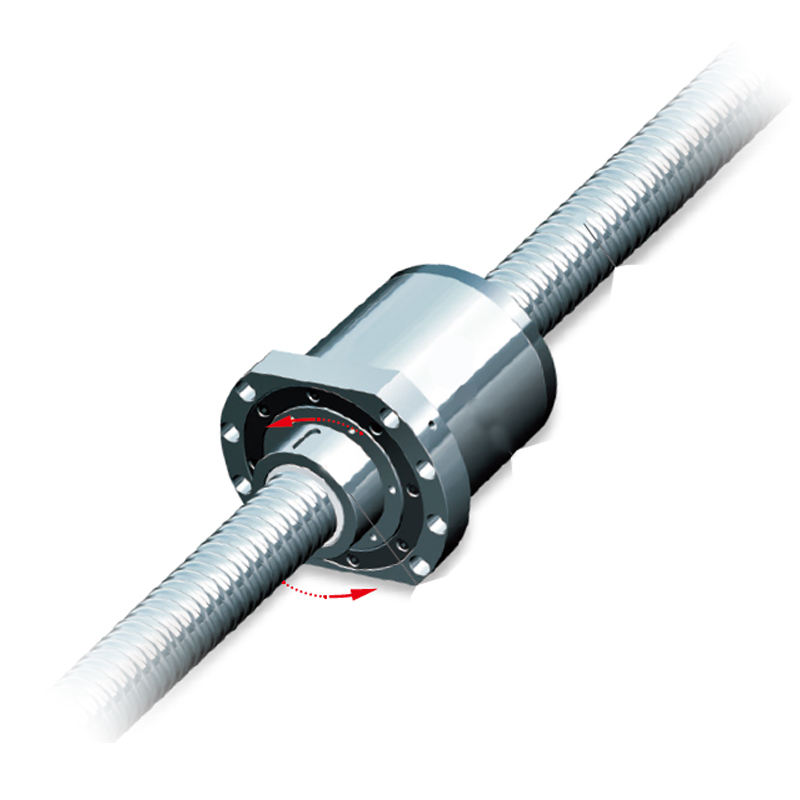

The main drive of the ball nut is a revolution in the form of ball screw auxiliary drive. In the fields of long stroke, heavy load, and high-speed transmission, the rotating nut combination unit will be your first Product selection

Characteristics of rotating nut combination unit: Low inertia: Compared to using screw rotation as the active drive, using nut rotation as the active drive greatly reduces the rotational inertia of the mechanical motion system, increases the maximum speed of the system, facilitates high-speed transmission, and reduces the selected motor power. High stiffness: Compared to the active driving method of screw rotation, the bearing size specifications arranged on the outer circle of the nut are larger; At the same time, because the screw does not rotate, there is no need to install bearings on its shaft neck, which can apply greater axial pre tension force to the screw, greatly improving the stiffness of the entire ball screw pair

Multi nut drive: Multiple rotating nut combination units can be installed on a ball screw, and multiple workbenches can be driven simultaneously or separately, with their movements not interfering with each other. Easy design and installation: The rotating nut combination unit integrates multiple functional components, simplifying design and facilitating installation and debugging. Other: Due to the non rotation of the screw, there is no circumferential friction at the middle auxiliary support, and there is no local heating problem; When the positioning accuracy is high and the influence of temperature rise is considered and a hollow cooling structure with a screw is adopted, the cooling pipe joint is easier to arrange and install because the screw does not rotate.

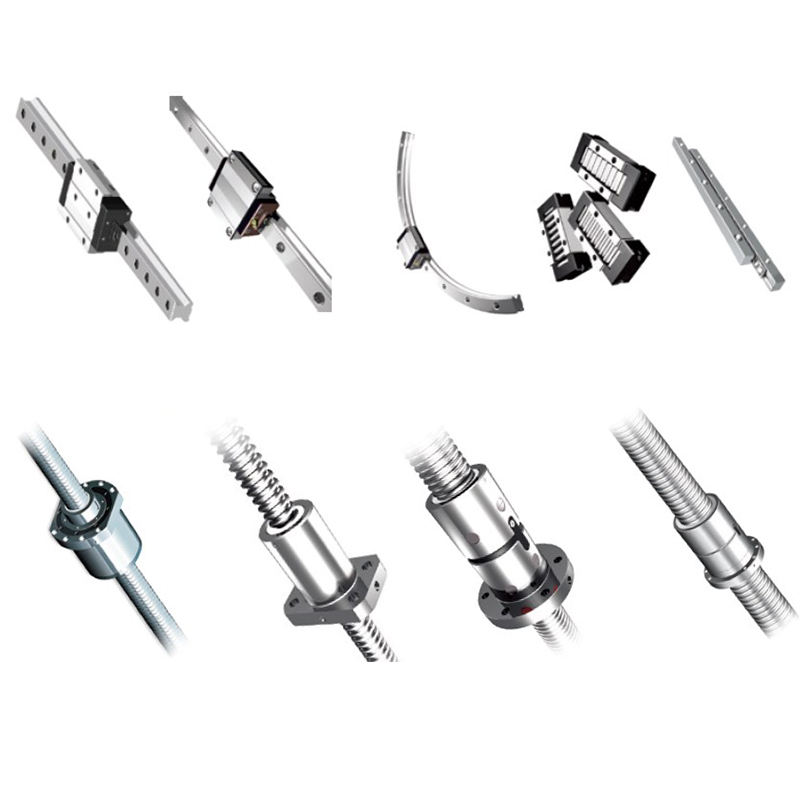

Precision linear guideway

GZB series-heavy load Roller caged linear guidewayGZB-AAAAL heavy load roller LMG
GZB-BA/BAL heavy load roller LMG
GGB four direction equal load ball LM guide
GGB-AA/AAL four direction equal load ball LM guide
GGB-AB/ABL four direction equal load ball LM guide
GGB-BABAL four direction equal load ball LM guide
GGC type Miniature linear guideway
GGD heavy load radial linear guideway
GGD-AAAAL heavy load radial guideway
GGD-BA/BAL heavy load radial guideway

Precision linear motion spline series

Precision linear motion spline series

GJZ Convex type

GJZA Convex type

GJF Convex type

GJH Convex type

GJZG Convex type

GJFG Convex type

GJZD Convex type

CNC Precision Worktable

CNC Precision Worktable

DZHQ type

Precision roller guide block GZD roller guide block Precision roller cross guide GZV precision roller cross guide

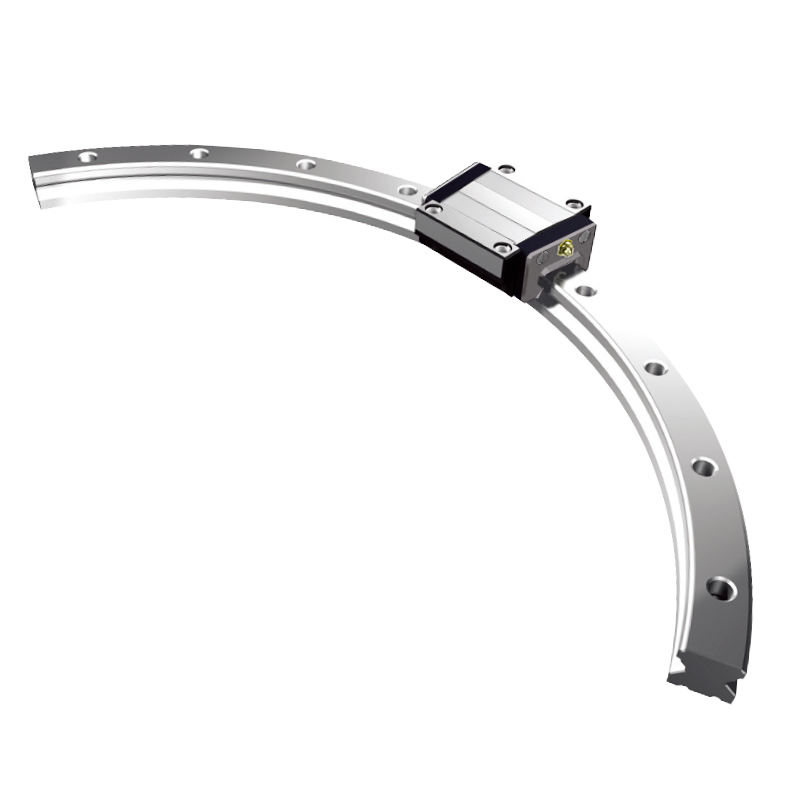

GGY arc LMG

Precision ball screw assembly JF / JFZD large heavy load ball screw assembly

JF type large heavy load ball screw

JFZD heavy load ball screw

DKF high speed ball screw

DKFZD high speed precision ball screw

Ball screw with FF / FFZ type inner cycle , single nut

FFB type inner cycle , deflected lead preload flange nut

FFZD type inner cycle , combined spacer preload nut

Ball screw with FFZL type inner cycle , thread preload nut

Ball screw with JF mini-type

Ball screw with CMFZD outer cycle , tube enclosed spacer preload nut

Ball screw with CTF outer cycle tube

Ball screw with DGF inner cycle end housing

Ball screw with DGZ inner cycle end housing type

Precision linear motion bushing

Precision linear motion bushing

Dimension series of GTA , GTAT type

Dimension series of GTB , GTB-T , GTBT , GTBT-T type

Dimension series of GTC type bushing

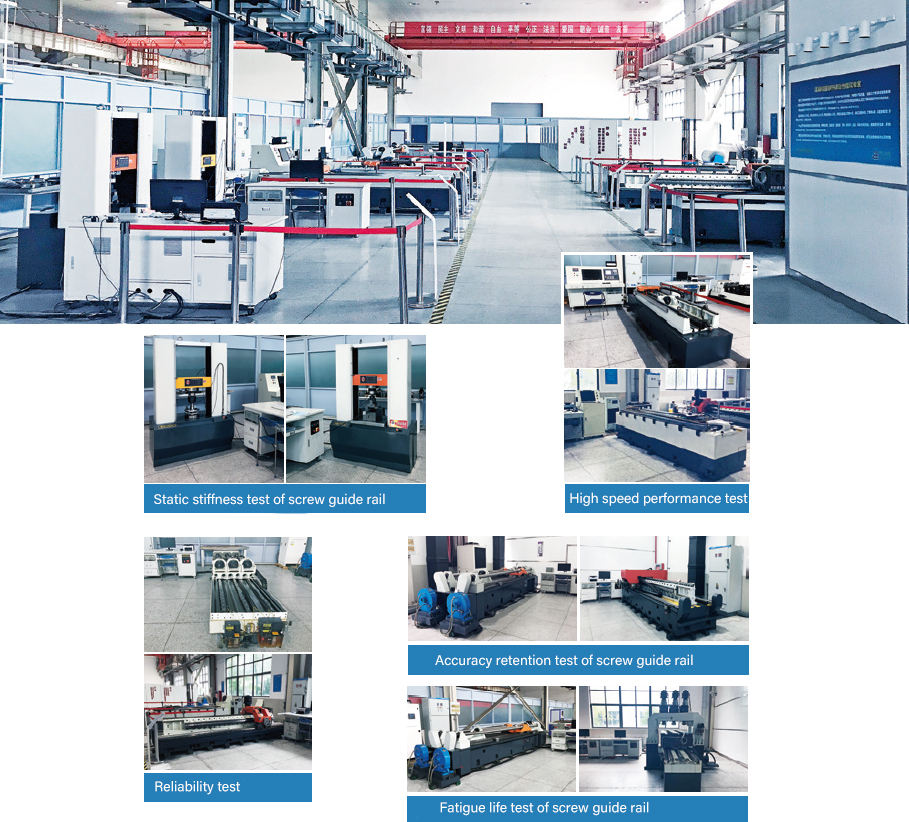

The company adheres to technological innovation, constantly pays attention to, tracks, and masters international advanced technologies. The company has a comprehensive performance testing laboratory for rolling functional components, with a noise level of 70dB when the high-speed ball screw pair runs at 60m/min and 68dB when the high-speed linear rolling guide pair runs at 60m/min. It provides batch matching ball screw pairs and rolling guide pairs for precision horizontal machining centers, achieving a fast movement speed of 48m/min for each axis, positioning accuracy of 0.002mm, and repeated positioning accuracy of 0.001mm. The company has established a complete equipment guarantee system and possesses a batch of internationally advanced and domestically leading excellent equipment. It has built production lines for high-precision ball screw pairs, large-scale ball screw pairs, and precision rolling guide rail pairs. The company's products are widely matched with well-known high-end CNC machine tools both domestically and internationally, promoting the upgrading and replacement of imported domestically produced rolling functional components. In 2021, the company presided over the preparation of 4 national standards and 4 industry standards, and multiple products obtained national patents, China Machinery Industry Science and Technology Awards, and national key new product certificates.
